WELD METAL ER-70-S6 (MIG) - Kota Electrodes

METAL INERT GAS WIRE

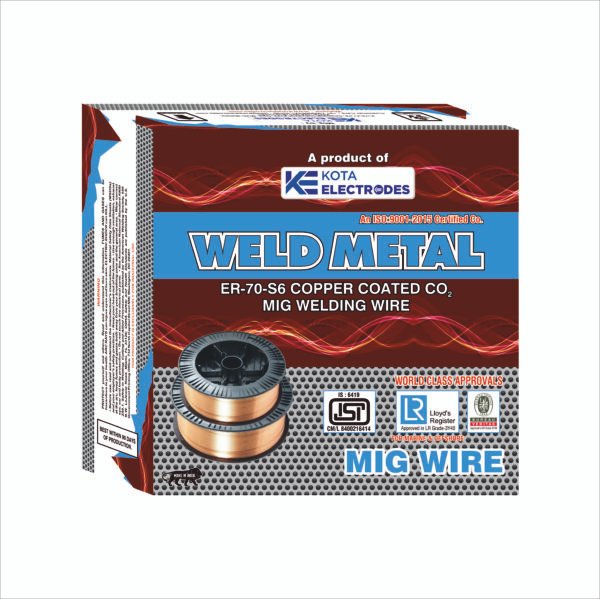

WELD METAL ER-70-S6 (MIG)

Hot

APPROVALS:

BUREAU VERITAS
LLOYD’S & SHIPPING (LR), LONDON
BUREAU OF INDIAN STANDARDS (ISI MARKED)

CLASSIFICATION & COADING:

AWS/SFA5.18	:	ER :70S-6
IS : 6419	:	Grade S6
BEEN	:	G2TiW2Ti

CHARACTERISTICS & APPLICATIONS:

Weld Metal ER-70-S6 (MIG) is a copper-coated manganese-silicon bearing wire for MIG welding. It gives a stable arc and minimum spatter under optimum welding conditions. It is designed for all positional welding of structural steels, pressure vessels, etc. The weld metal is of radiographic quality.

WIRE CHEMISTRY % ( Typical ):

C%	Mn%	Si%	Cu%	S%
0.10 max	1.60 max	0.90 max	0.20 max	0.02 max
P%
0.02 max

ALL WELD METAL MECHANICAL PROPERTIES ( Under CO2 Shielding Typical):

UTS ( N/mm² )	YS ( N/mm² )	Elongation % (GL=4d)	CVN Impact at -29°C
520	440	26	40


Size Available ( mm)	0.80	1.00	1.20
