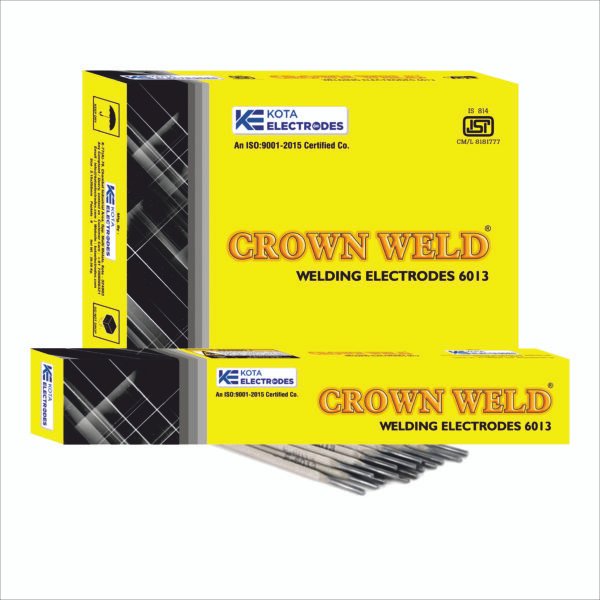

CROWN WELD 6013

Crown Weld
ORIENT 6013
MILD STEEL ELECTRODES
 CROWN WELD 6013
APPROVALS:

BUREAU OF INDIAN STANDARDS (ISI MARKED)

CLASSIFICATION & COADING:
IS 814:2004 : ER 4121
AWS 5.1 : E6013
DESCRIPTION:

CROWN WELD 6013 is a medium rutile-coated, general-purpose mild steel welding electrode specially manufactured for the best quality weld. Low spatter, adequate penetration, easy slag removal (self-pealing slag), and finely rippled, smooth beads are the special features of Crown Weld electrodes. Mechanical properties are very good and consistent. It is easy to operate on an AC as well as a DC welding power source in all conventional welding positions.

APPLICATIONS:

Railway Wagons, Fire Boxes, Auto Bodies, Ship building, Light Structural works, Machine Base & Machinery
Construction, Pipe Lines, Storage Tanks, Bridges, Building Construction Works, Mild Steel furniture etc.

CHEMICAL ANALYSIS OF ALL WELD METAL:
Carbon% Manganese% Silicon% Sulphur% Phosphorous%
0.12 max 0.32-0.550.30 max0.030 max0.030 max
MECHANICAL PROPERTIES OF ALL WELD METAL:
Yield strength Ultimate Tensile Strength Elongation% CVN Impact at RT
330 N/mm2 min 410-540 N /mm222-26%50-70 joules
CURRENT & CONDITIONS : USE AC ( 50 OCV ) OR DC ( +/ - )
SIZE (mm)2.50x350 3.15x350 3.15x450 4.00x350 4.00x450 5.00x450
Amps60-90 100-140 100-140 140-200 140-200 180-240
RECOMMENDATIONS:

To obtain the best result use welding current with in the recommended range, Store the electrodes in Dry Place.
